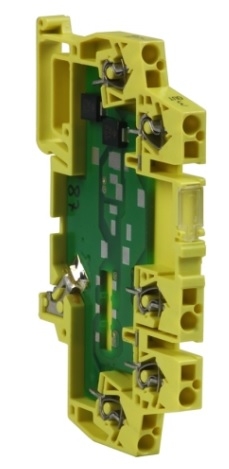

Přepěť. sv. DEHNconect DCO 919988

Popis produktu:

Nominal voltage (UN) 24 V
Max. continuous operating d.c. voltage (Uc) 28 V
Max. continuous operating a.c. voltage (Uc) 19.5 V
Nominal current (IL) 10 A
C1 Total nominal discharge current (8/20 µs) (In) 0.6 kA
C1 Nominal discharge current (8/20 µs) per line (In) 0.3 kA
Voltage protection level line-line for In C1 (Up) ? 96 V
Voltage protection level line-PG for In C1 (Up) ? 48 V
Voltage protection level line-line at 1 kV/µs C3 (Up) ? 76 V
Voltage protection level line-PG at 1 kV/µs C3 (Up) ? 38 V
Cut-off frequency line-PG (fG) 5.5 MHz
Capacitance line-line (C) ? 0.6 nF
Capacitance line-PG (C) ? 1.2 nF
Operating temperature range -40°C...+80°C
Degree of protection IP 00, with cover IP 20
For mounting on 35 mm DIN rails acc. to EN 60715
Connection (input/output) spring / spring
Cross-sectional area, solid 0.08 - 2.5 mm2
Cross-sectional area, flexible 0.08 - 2.5 mm2
Earthing via DIN rail / terminal
Enclosure material polyamide PA 6.6
Colour yellow
Test standards IEC 61643-21 / EN 61643-21
SIL classification SIL1 / SIL3 *)
Approvals GOST
Weight 33 g
Customs tariff number 85363010
GTIN 4013364092969
PU 1 pc(s)
