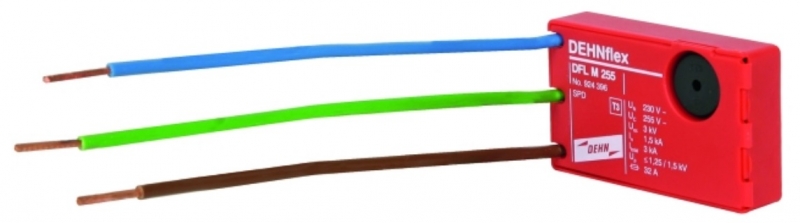

Svodič DEHNflex M 255 924396

Popis produktu:

SPD according to EN 61643-11 Type 3
SPD according to IEC 61643-1/-11 Class III
Nominal a.c. voltage (UN) 230 V
Max. continuous operating a.c. voltage (UC) 255 V
Nominal discharge current (8/20 µs) (In) 1.5 kA
Total discharge current (8/20 µs) [L+N-PE] (Itotal) 3 kA
Combined impulse (UOC) 3 kV
Combined impulse [L+N-PE] (UOC total) 6 kV
Voltage protection level [L-N] (UP) ? 1.25 kV
Voltage protection level [L/N-PE] (UP) ? 1.5 kV
Response time [L-N] (tA) ? 25 ns
Response time [L/N-PE] (tA) ? 100 ns
Max. mains-side overcurrent protection 32 A gL/gG or B/C 32 A
Short-circuit withstand capability for mains-side overcurrent
protection with 32 A gL/gG 6 kArms
Temporary overvoltage (TOV) [L-N] (UT) 335 V / 5 sec.
Temporary overvoltage (TOV) [L/N-PE] (UT) 400 V / 5 sec.
Temporary overvoltage (TOV) [L+N-PE] (UT) 1200 V + UCS / 200 ms
TOV characteristic [L-N] withstand
TOV characteristic [L/N-PE] withstand
TOV characteristic [L+N-PE] safe
Fault indication acoustic signal on
Number of ports 1
Operating temperature range (TU) -25°C...+40°C
Terminal wires 1 mm2
, 120 mm long
Enclosure material thermoplastic, red, UL 94 V-2
Place of installation indoor installation
Degree of protection of installed device IP 20
Dimensions 30 x 50 x 11 mm
Weight 32 g
Customs tariff number 85363010
GTIN 4013364091016
PU 1 pc(s)
