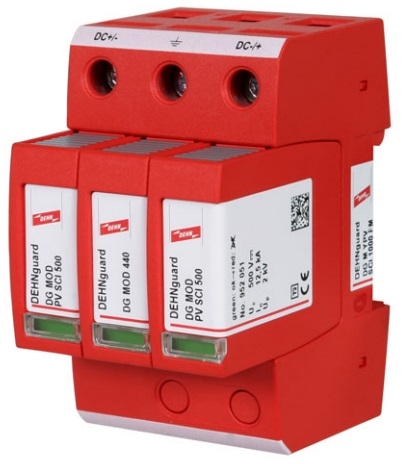

Svodič DEHNg. DG M YPV1000 952510

Popis produktu:

SPD according to EN 61643-11 Type 2
SPD according to IEC 61643-1 Class II
Max. PV voltage [UPVmax] ? 1000 V
Total discharge current (8/20 µs) [Itotal] 40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] [In] 12.5 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] [Imax] 25 kA
Voltage protection level [UP] ? 4 kV
Voltage protection level for 5 kA [UP] ? 3.5 kV
Response time [tA] ? 25 ns
Operating temperature range [TU] -40°C...+80°C
Breaking capacity of the internal fuse 30 kA / 1000 V DC
Operating state/fault indication green / red
Cross-sectional area (min.) 1.5 mm2 solid/flexible
Cross-sectional area (max.) 35 mm2 stranded/25 mm2 flexible
For mounting on 35 mm DIN rail acc. to EN 60715
Enclosure material thermoplastic, red, UL 94 V-0
Degree of protection IP 20
Dimension 3 TE, DIN 4388
1 pcs.
Ordering information
Type DG M YPV SCI 1000
Part No. 952 510
