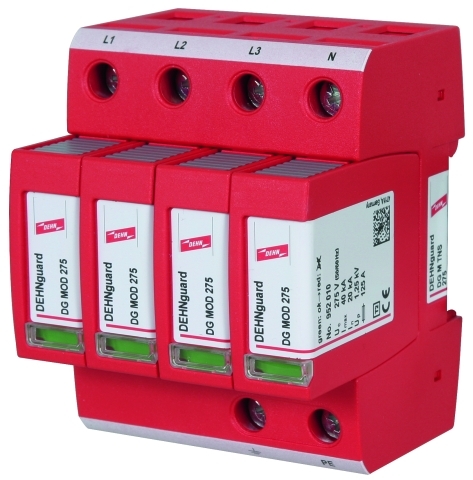

Svodič DEHNguard DG M TNS275 952400

Popis produktu:

SPD according to EN 61643-11 Type 2
SPD according to IEC 61643-1/-11 Class II
Nominal a.c. voltage (UN) 230/400 V
Max. continuous operating a.c. voltage (UC) 275 V
Nominal discharge current (8/20 µs) (In) 20 kA
Max. discharge current (8/20 µs) (Imax) 40 kA
Voltage protection level (UP) ? 1.25 kV
Voltage protection level at 5 kA (UP) ? 1 kV
Response time (tA) ? 25 ns
Max. mains-side overcurrent protection 125 A gL/gG
Short-circuit withstand capability for max. mains-side overcurrent
protection 50 kArms
Temporary overvoltage (TOV) (UT) 335 V / 5 sec.
TOV characteristic withstand
Operating temperature range (TU) -40°C...+80°C
Operating state/fault indication green / red
Number of ports 1
Cross-sectional area (min.) 1.5 mm2 solid/flexible
Cross-sectional area (max.) 35 mm2 stranded/25 mm2 flexible
For mounting on 35 mm DIN rails acc. to EN 60715
Enclosure material thermoplastic, red, UL 94 V-0
Place of installation indoor installation
Degree of protection IP 20
Capacity 4 module(s), DIN 43880
Approvals KEMA, VDE, UL, VdS
Weight 443 g
Customs tariff number 85363030
GTIN 4013364108455
PU 1 pc(s)
