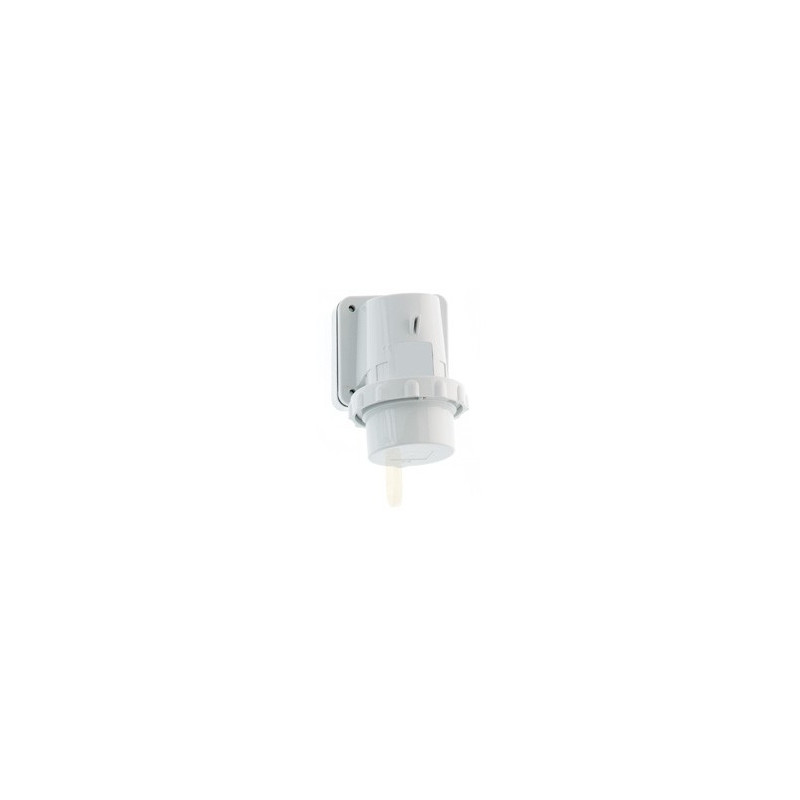

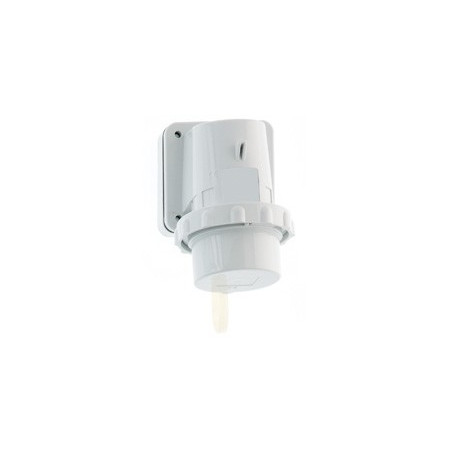

BALS 24013 (IP 3253) IP 67

Zásuvka 24013 (IP 3253) IP 67, BALS

Popis:
Product Group: GT wall mounting appliance inlet
Amperage: 32A
Poles: 5p (3p+N+PE)
Earth 'Clock' Position: 6 h
Voltage: 200/346 up to 240/415V
Frequency: 50 and 60Hz
Protection: IP67

Full Description:
Membership: screw terminal
Color code: red RAL 3000
Connection design: screw terminal
Cable entry: top entry M25
Max. conductor: 6,0 mm2
Packaging: 75x90 mm (HxW)

Material:
Housing material: Polyamide
Contact / Contact Carrier: contact carrier made of Polyamide, contacts are brass nickel plated
