CW41S koax(75@/PVC 5 ) *

Koaxiální kabel pro vnitřní instalace CW41S, CAVEL

Popis:

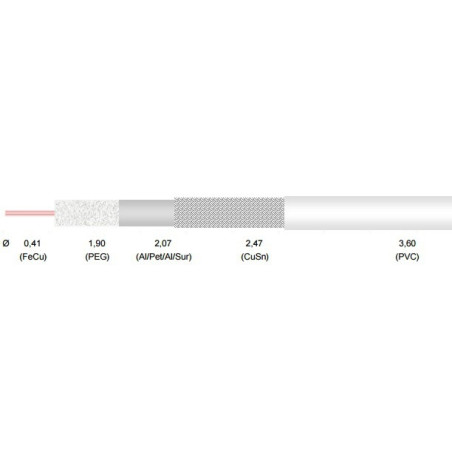

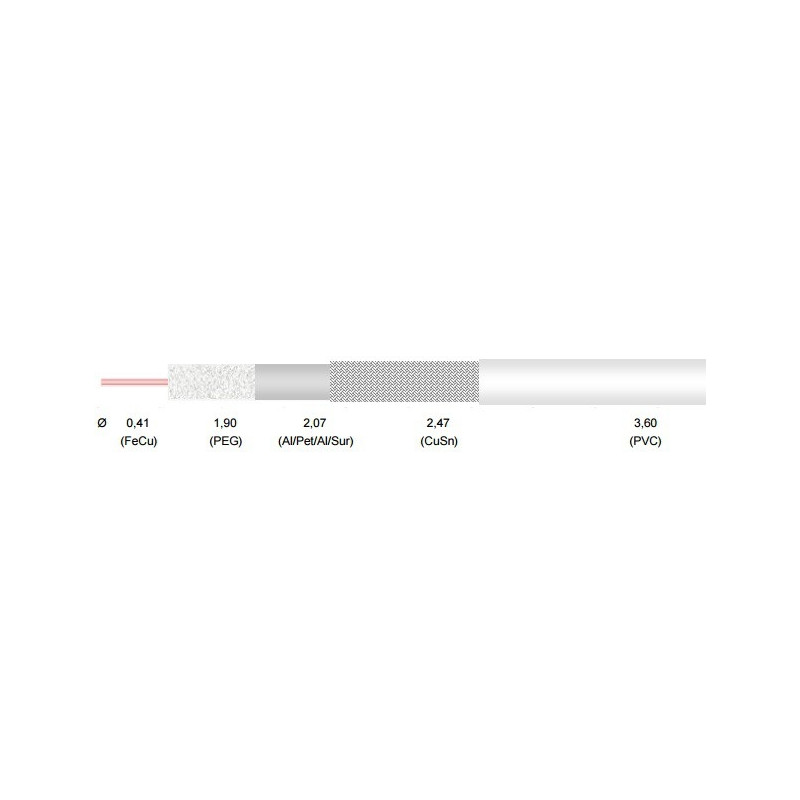

Inner conductor of copper clad steel (FeCu) 0,41 ± 0,02 mm
Dielectric of physical foam polyethylene (PEG) 1,90 ± 0,10 mm
Aluminium/Polyester/Aluminium/Surlyne tape longitudinally (Al/Pet/Al/Sur)
overlapped and bonded to the dielectric
Braid of tinned copper wires (CuSn)
Braid optical coverage (IEC 96-1) 70 %
Diameter under Sheath 2,47 mm
Outer sheath of Polyvinylchloride - white (PVC) - lead-free (PVC) 3,60 ± 0,10 mm
