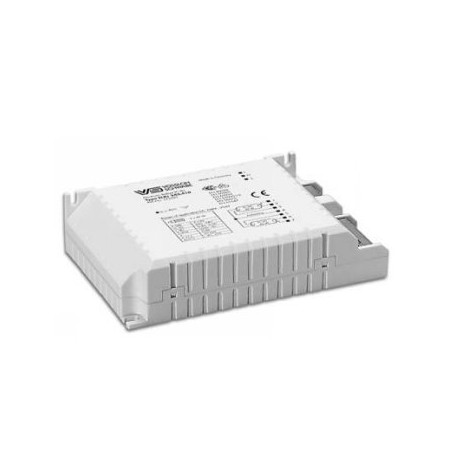

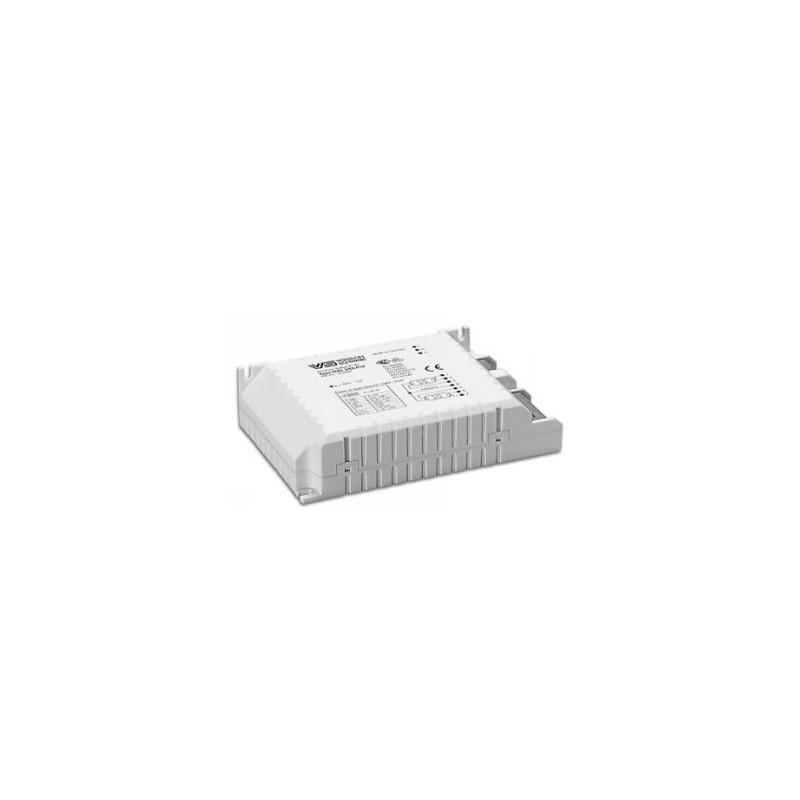

Předřadník elektronický ELXC 142.872 220-240V 1X/2X 18W-40W, Vossloh
Popis:
ELXc 142.872 220-240V 1x/2x 18W-40W, Vossloh Schwabe
Casing:Heat-resistitant polyamide
Casing temperature tc: 70°C
Constant power consumption
Fixing bracket for screw M4 for lateral or base mounting.
Soft start thanks to preheated lamp.
Automatic restart once the lamp has been changed.
Power factor: 0,98
Lamp type: CF-DE 1x26W/2x26W, CF-TE 1x32/1x42W, CF-L 1x18W/1x24W/1x36W, CF-L 2x18W/2x24W, CF-LE 1x40W, T-R5 1x22/1x40W, CF-DD 1x38W
Output [W]: 42
Lamp number: 1
Dimming: Not dimmable, warm start
Main voltage AC [V]: 230
Frequency [Hz]: 50
Kind of connection: Push-in terminal
Version: Compact plastic casing K3
Protection class: Class of protection I and II
Width B [mm]: 79
Height [mm]: 33
Length [mm]: 123
Fixing centre [mm]: 111
Max. ambient temperature [°C]: 50
