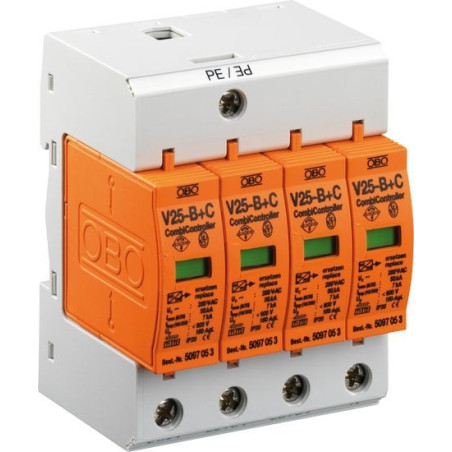

Přepěťová ochrana V25-B+C 4-280 5094426, OBO BETTERMANN
Popis:
V 25-B+C/...: Combination arrestor set, lightning and surge arrestor Type 1+2 to DIN EN 61643-11
(B+C to VDE 0675 Part 6).
• With new Multibase base with multi connection terminals
• Complete unit consisting of cover and base, pre-mounted and ready for connection
• For TN systems
• Plug-in arrestor with dynamic isolating device
• With visual function display
• Voltage protection level < 0,9 kV
• Encapsulated non-extinguishing zinc oxide varistor arrestor for use in standard distributor housings
• Marked connections
Application example: Building with open-wire power supply or for setting up
lightning protection equipotential bonding in residential buildings.
