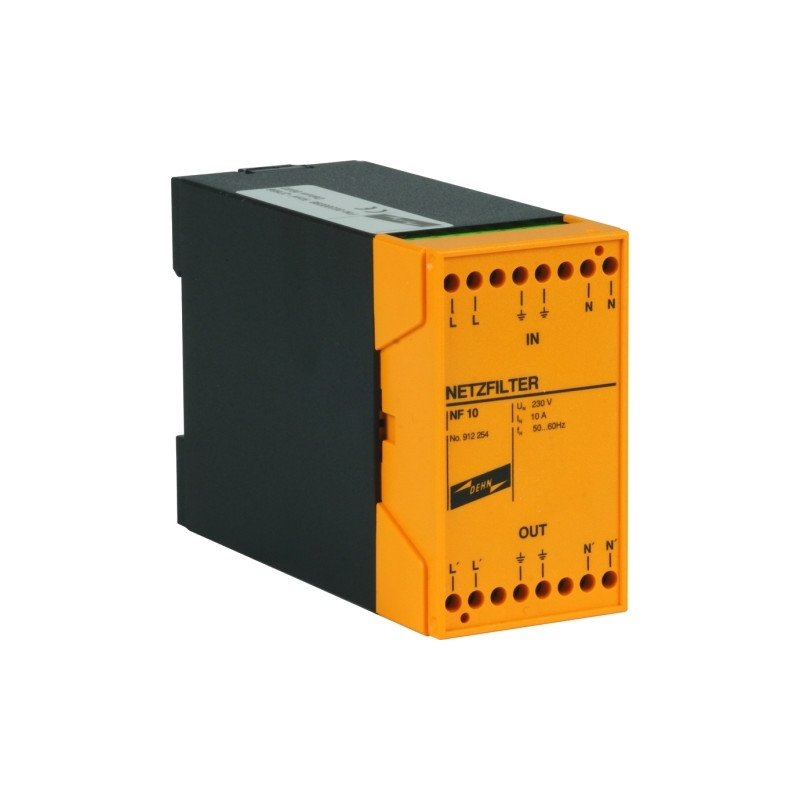

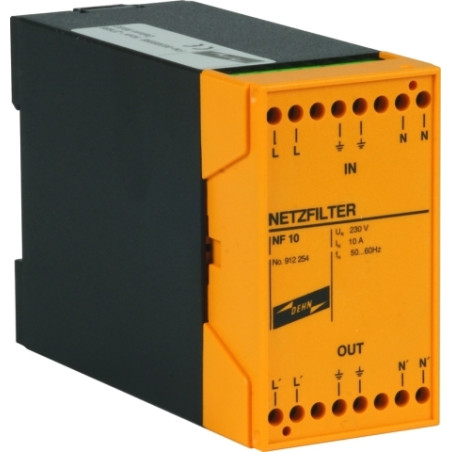

Svodič NF 10 Netzfilter 912254, DEHN
Popis:
Nominal a.c. voltage (UN) 230 V
Nominal load current a.c. (IL) 10 A
Nominal frequency (fN) 50...60 Hz
Discharge current (for UN) ? 3.5 mA
Attenuation for f = 1 MHz, balanced > 64 dB
Attenuation for f = 1 MHz, unbalanced > 69 dB
Total circuit capacitance [L-N] 660 nF
Total circuit capacitance [L (N)-PE] 66 nF
Total circuit inductance 1.8 mH per path
Backup fuse 10 A gL/gG
Operating temperature range -25°C...+40°C
Cross-sectional area min. 2.5 mm2 stranded, max. 4 mm2 flexible
For mounting on 35 mm DIN rail acc. to EN 60715
Enclosure material thermoplastic GF (polycarbonate)
Degree of protection IP 20
Dimensions 110 x 45 x 75 mm
Weight 300 g
Customs tariff number 85489090
GTIN 4013364073685
PU 1 pc(s)
