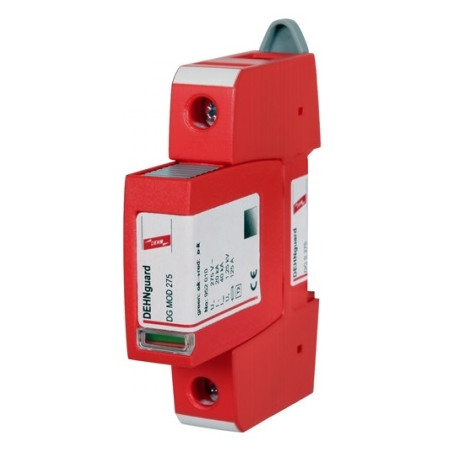

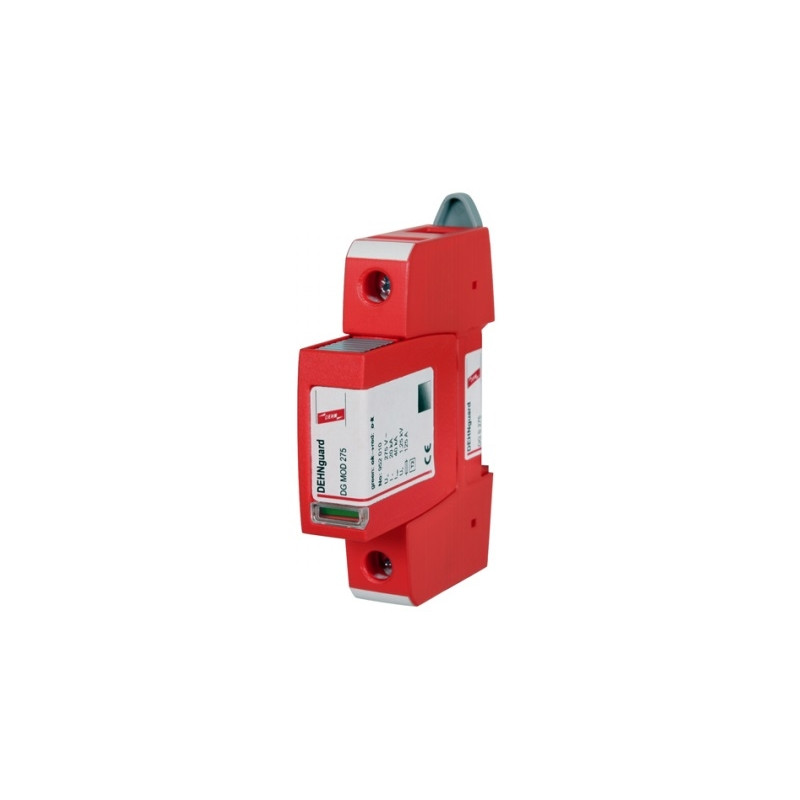

Svodič DEHNguard S DG S275 952070
Popis:
SPD according to EN 61643-11 Type 2
SPD according to IEC 61643-1 Class II
Max. continuous ac voltage [UC] 275 V
Max. continuous dc voltage [UC] 350 V
Nominal discharge current (8/20 µs) [In] 20 kA
Max. discharge current (8/20 µs) [Imax] 40 kA
Voltage protection level [UP] ? 1.25 kV
Voltage protection level at 5 kA [UP] ? 1 kV
Response time [tA] ? 25 ns
Max. mains-side overcurrent protection 125 A gL/gG
Short circuit withstand capability at max. mains-side overcurrent
protection
50 kArms
TOV voltage [UT] 335 V / 5 sec.
Operating temperature range [TU] -40°C...+80°C
Cross-sectional area (min.) 1,5 mm2 solid/flexible
Cross-sectional area (max.) 35 mm2 stranded/25 mm2 flexible
Mounting on 35 mm DIN rail acc. to EN 60715
Enclosure material red thermoplastic, UL 94 V-0
Degree of protection IP 20
Dimension 1 mod., DIN 43
Approvals, Certifications KEMA, VDE
Ordering information
Type DG S 275
Part No. 952 070
Packing unit 1pcs.
