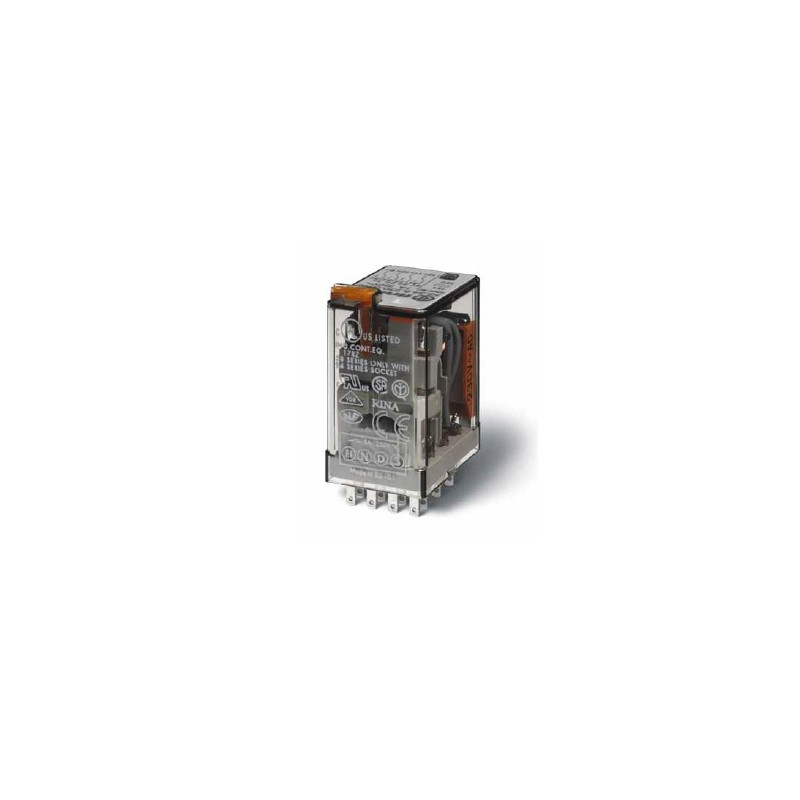

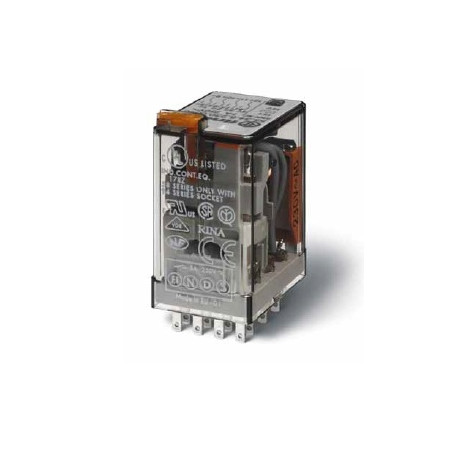

Relé 55.34.8.024.0050 24V AC 4x 7A

Relé 55.34.8.024.0050 , 4PDT, 7A, 24V AC coil, AgNi contact, lockable test button and LED

Dimensions 27,7x20,7x37,2mm
Type industrial
Contact Form 4PDT
Max. Switching Current 7 A
Coil Voltage 24VAC
Coil Resistance 190 Ohm
Coil Power 1000 mW
Max. Switching Power 1750VA
Max. Switching Voltage 250VAC
Dielectric Strength (between c 2000VAC
Operate/Release time 9ms/3ms
Contact material AgNi
