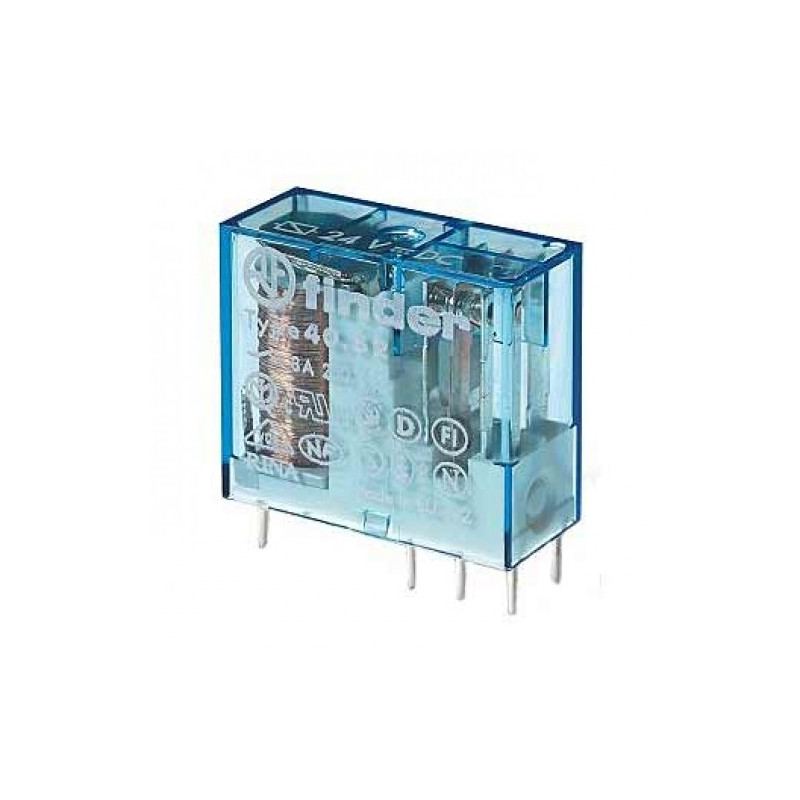

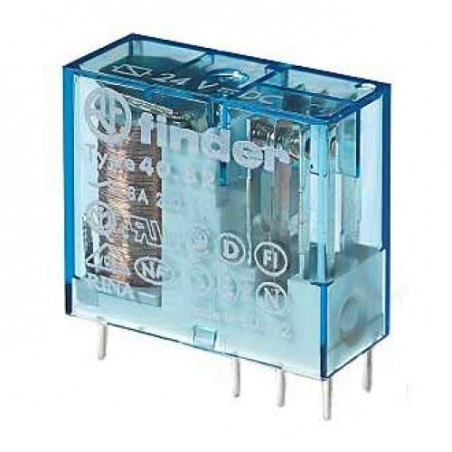

Relé 40.52.7.024.0000 24V DC 2x 8A

FINDER - 40.52.7.024.0000 - RELAY, DPCO, 24VDC, 8A, PCB

Informace o produktu
RELAY, DPCO, 24VDC, 8A, PCB
Relay Type: Miniature
Coil Voltage VDC Nom: 24V
Contact Current Max: 15A
Contact Voltage AC Nom: 230V
Coil Resistance: 1.2kohm
Contact Configuration: DPDT-CO
Coil Type: DC Sensitive
Coil Current: 21mA
Nom Operating Power: 500mW
Relay Mounting: Through Hole
External Height: 29mm
External Width: 12.4mm
External Depth: 25mm
SVHC: No SVHC (19-Dec-2012)
Current Rating: 8A
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Rohs: Ano

Katalog Strana 1
