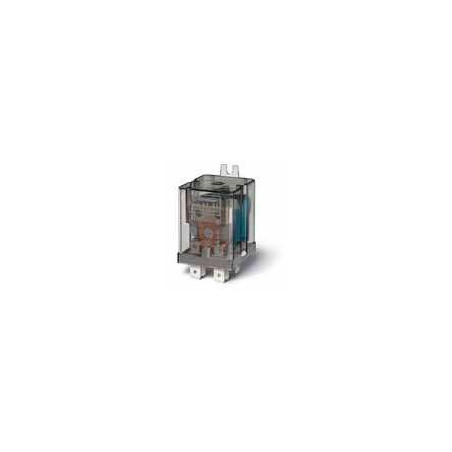

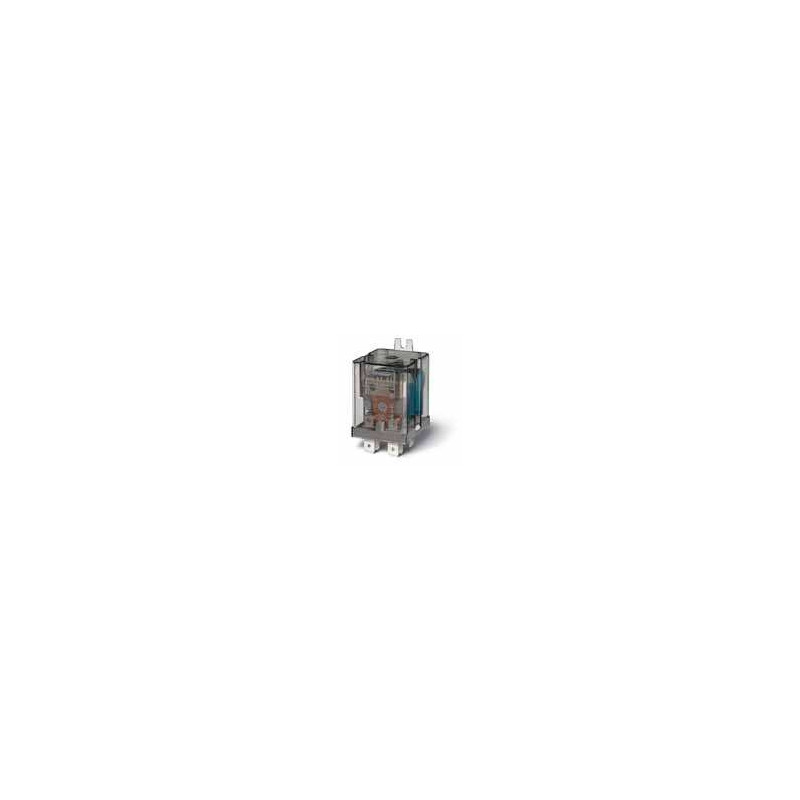

FINDER - 62.82.8.230.0300 - RELAY, DPNO, 230VAC
Product Information
RELAY, DPNO, 230VAC
Relay Type: Power
Coil Voltage VAC Nom: 230V
Contact Current Max: 30A
Contact Voltage AC Nom: 250V
Coil Resistance: 5kohm
Contact Configuration: DPNO
Coil Type: AC
Coil Current: 14mA
Nom Operating Power: 3VA
Relay Mounting: Flange
External Height: 45mm
External Width: 38mm
External Depth: 35.3mm
SVHC: No SVHC (19-Dec-2012)
AC Coil Power: 2.2VA
Approval Bodies: CE / IMQ / SEMKO / SEV / UL / VDE
Approval Category: IEC720
Coil Operating Lower Percent Limit: 80%
Coil Operating Upper Percent Limit: 110%
Contact Configuration: DPNO
Contact Material: Silver Cadmium Oxide
Contact Voltage AC Max: 400V
Current Rating: 16A
External Length / Height: 45mm
Fixing Centres: 63.5mm
Mounting Type: Flange
No. of Poles: 2
Series: 62
Terminal Type: 6.35mm x 0.8mm
Rohs: Ano
