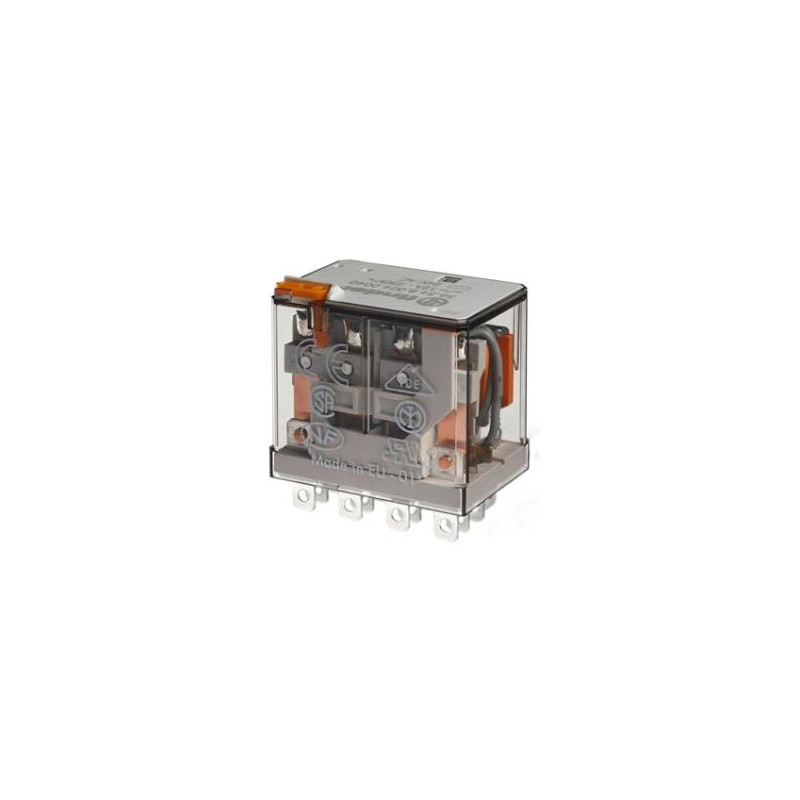

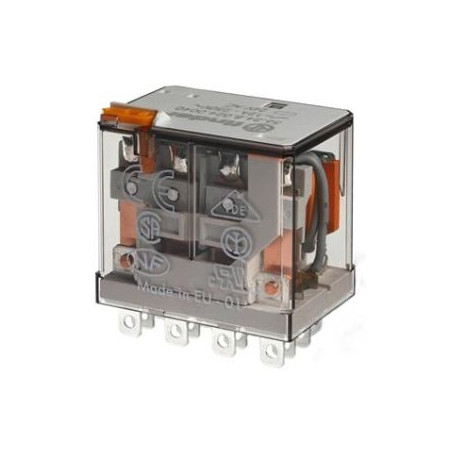

Relé 56.34.8.024.0040 24V AC 4P12A

Průmyslové relé 56.34.8.024.0040 4C/20A FIND 24VAC 81R

Dimensions 40,8x27,7x37,1mm
Type industrial
Contact Form 4PDT
Max. Switching Current 20 A
Coil Voltage 12VDC
Coil Resistance 123 Ohm
Coil Power 1000 mW
Max. Switching Power 3000VA
Max. Switching Voltage 400VAC
Dielectric Strength (between c 2500VAC
Operate/Release time 8ms/8ms
Contact material AgNi
Rohs: Ano

Katalog Strana: 1
