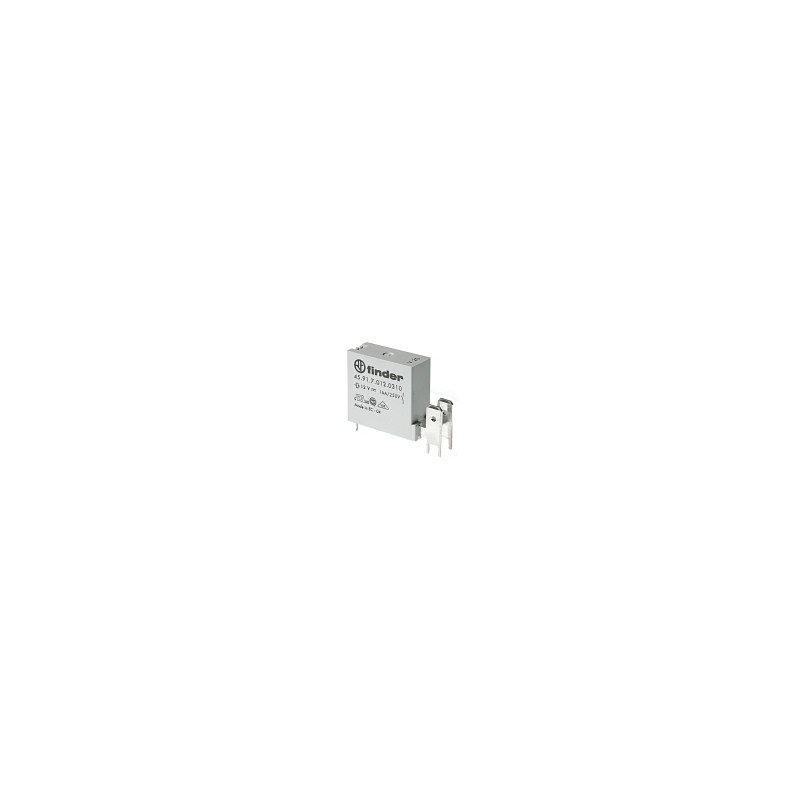

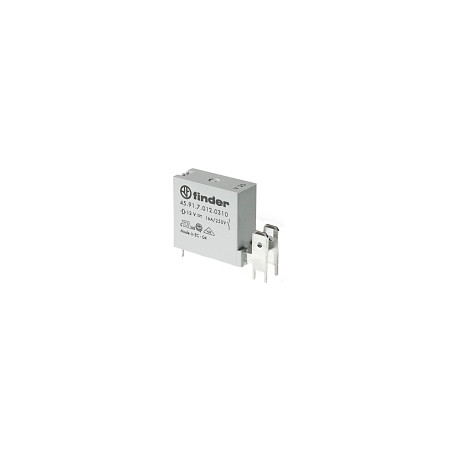

Relé 45.91.7.048.0310 48V DC 1x16A

Relé 45.91.7.048.0310 výkonové 48VDC 16A1a 6400R doDPS

Dimensions 40,7x12,5x28,5mm
Type power
Contact Form SPST-NO
Max. Switching Current 30 A
Coil Voltage 48VDC
Coil Resistance 6400 Ohm
Coil Power 360 mW
Max. Switching Power 4000VA
Max. Switching Voltage 400VAC
Dielectric Strength (between c 4000VAC
Operate/Release time 12ms/2ms
Contact material AgNi
Description Faston
