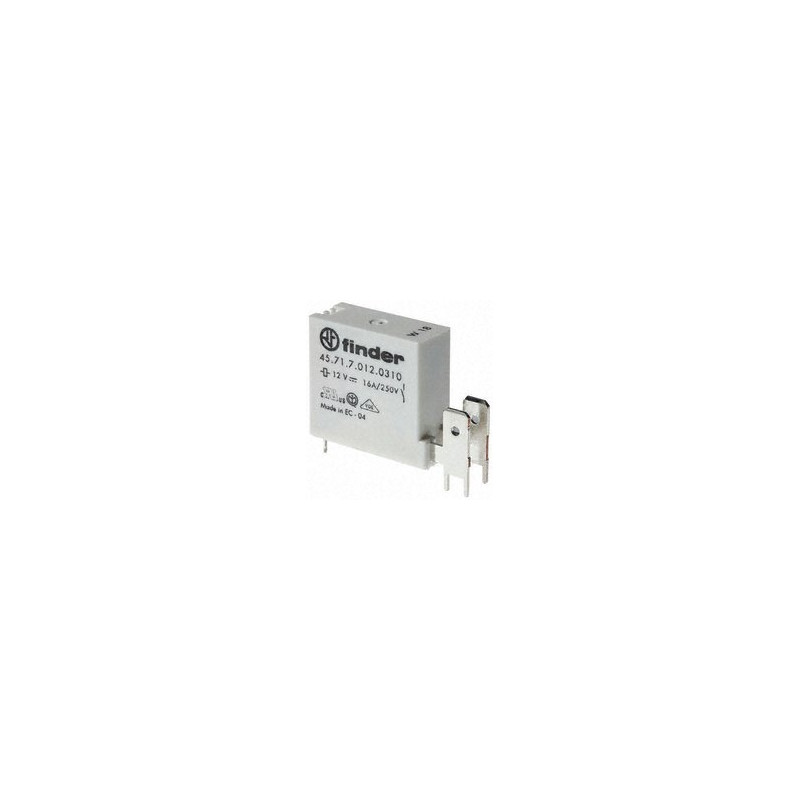

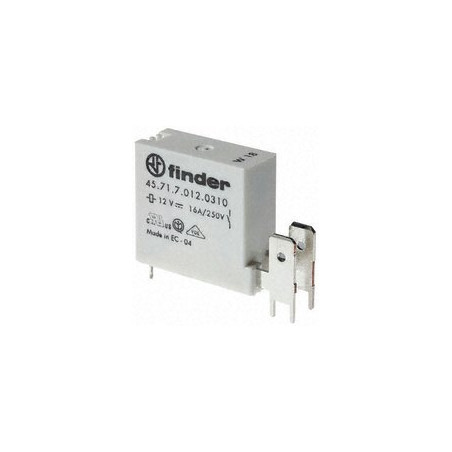

Relé 45.71.7.024.0310 24V DC 1x16A

45.71.7.024.0310 FINDER Relé 24VDC 16A 1a 400R do DPS+faston

Dimensions 40,7x12,5x28,5mm
Type power
Contact Form SPST-NO
Max. Switching Current 30 A
Coil Voltage 24VDC
Coil Resistance 400 Ohm
Coil Power 360 mW
Max. Switching Power 4000VA
Max. Switching Voltage 400VAC
Dielectric Strength (between c 4000VAC
Operate/Release time 10ms/2ms
Contact material AgCdO
Description Faston
