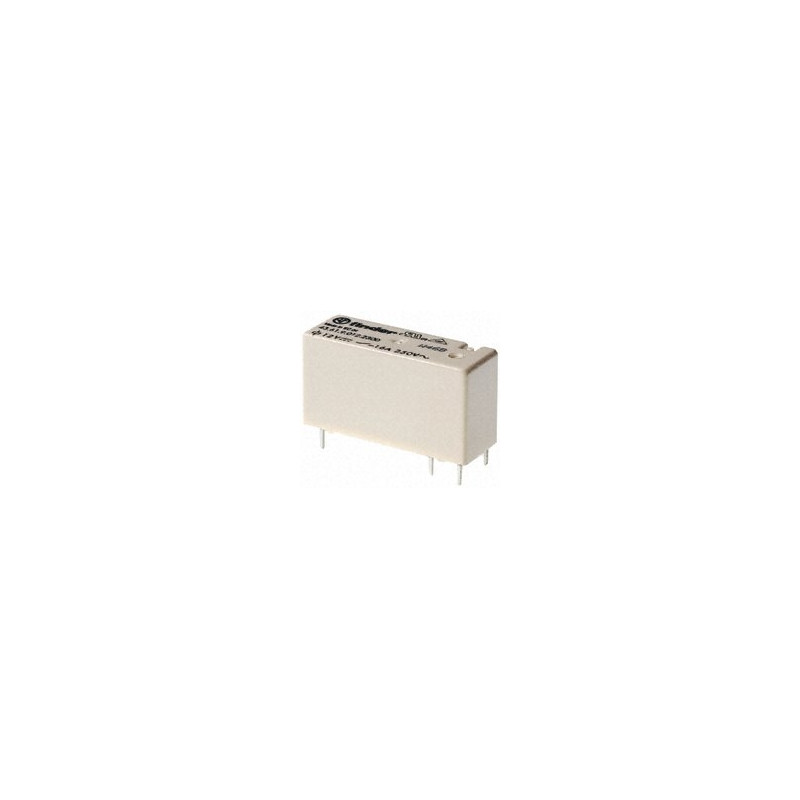

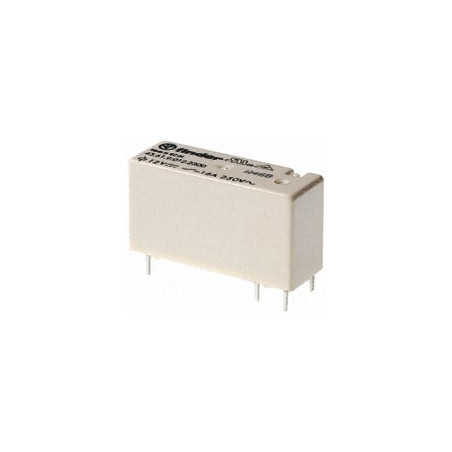

Relé 43.61.9.012.2300 12V DC 1x16A

FINDER - 43.61.9.012.2300 - RELAY, PCB, 16A, SPST-NO, 12VDC

Informace o produktu
RELAY, PCB, 16A, SPST-NO, 12VDC
Relay Type: PCB
Coil Voltage VDC Nom: 12V
Contact Current Max: 25A
Contact Voltage AC Nom: 250V
Coil Resistance: 360ohm
Contact Configuration: SPST-NO
Coil Type: DC
Coil Current: 33.3mA
Nom Operating Power: 400mW
Relay Mounting: Through Hole
External Height: 15.4mm
External Width: 10.2mm
External Depth: 28.6mm
SVHC: No SVHC (19-Dec-2012
Rohs: Ano
