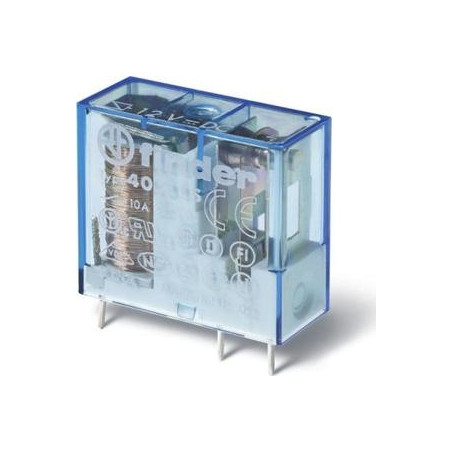

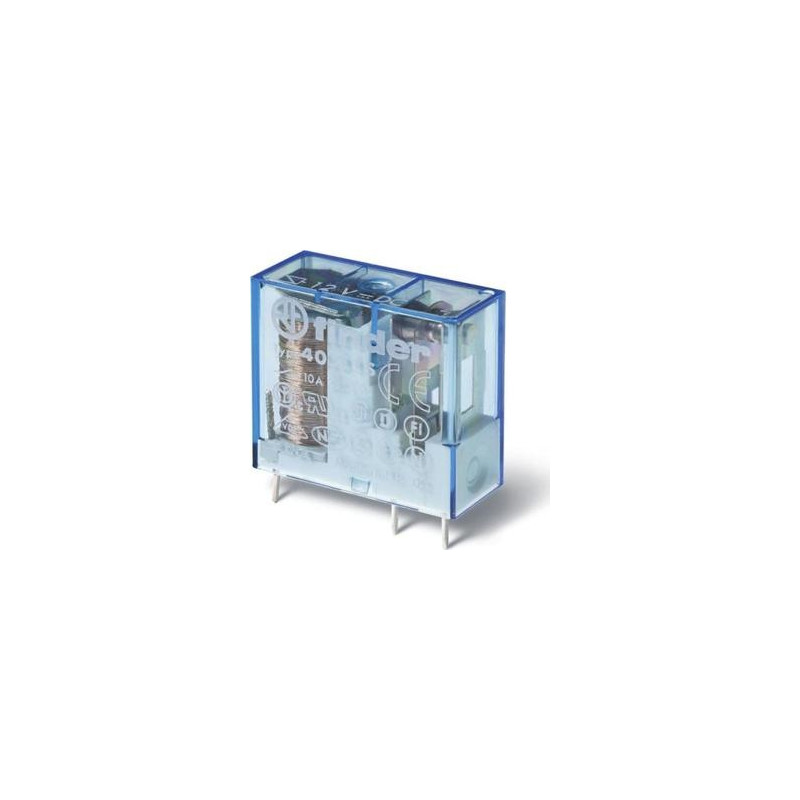

FINDER - 40.31.7.024.0000 - RELAY, SPCO, 24VDC, 10A, PCB
Informace o produktu
RELAY, SPCO, 24VDC, 10A, PCB
Relay Type: Miniature
Coil Voltage VDC Nom: 24V
Contact Current Max: 20A
Contact Voltage AC Nom: 230V
Coil Resistance: 1.2kohm
Contact Configuration: SPDT-CO
Coil Type: DC Sensitive
Coil Current: 21mA
Nom Operating Power: 500mW
Relay Mounting: Through Hole
External Height: 29mm
External Width: 12.4mm
External Depth: 25mm
SVHC: No SVHC (19-Dec-2012)
Contact Material: Silver Nickel
No. of Poles: 1
Operating Temperature Max: 70°C
Operating Temperature Min: -20°C
Switch Current Max: 10A
Switching Current Max: 10A
Soulad se směrnicí RoHS: Ano
