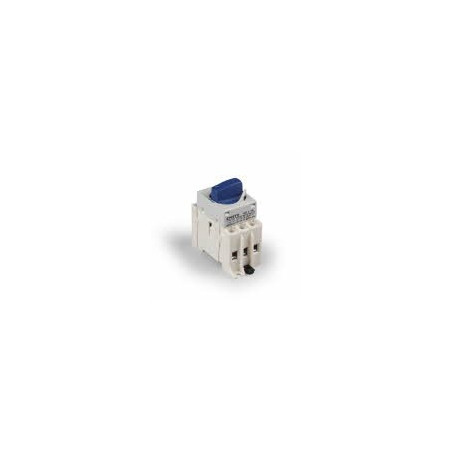

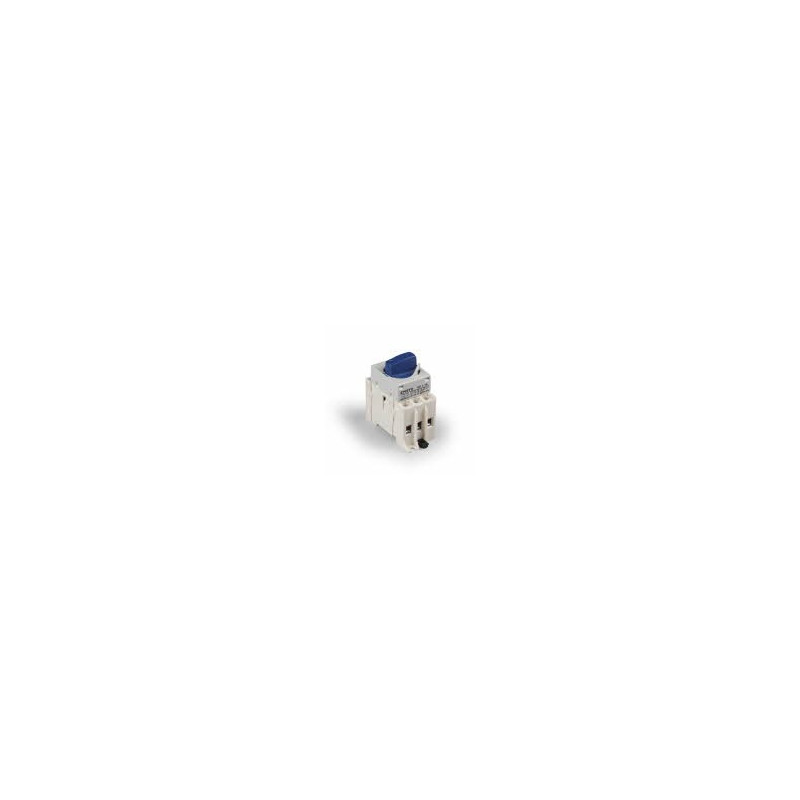

Spínač KS3.25 25A, ENSTO
Popis:
Breaking capacity 415 V, AC 23 A: 200 A
Making capacity 415 V, AC 23 A: 250 A
Rated insulation voltage: 800 V
Rated operational current: AC 22 A: 415V / 25A, 500V / 25A, 690V / 25A, AC 23 A: 415V / 25A, 500V / 25A, 690V / 25A
Short-circuit characteristics
Max. cut-off current: 6 kA
Max. fuse: 25 A
Max. Joule integral: 6.8
Rated conditional short-circuit current: 50 nA
Rated short time withstand current: 1260 A (1 s)
Ratings:
ETIM class: EC000216
Rated impulse withstand voltage: 8 kV
Mechanical
Tightening torque: 2 Nm
Dimensions:
Weight: 0.13 kg
Volume: 26.86 cm3
Conductor cross-section: Cu 1.5-16
Size: 40 x 85 x 79
