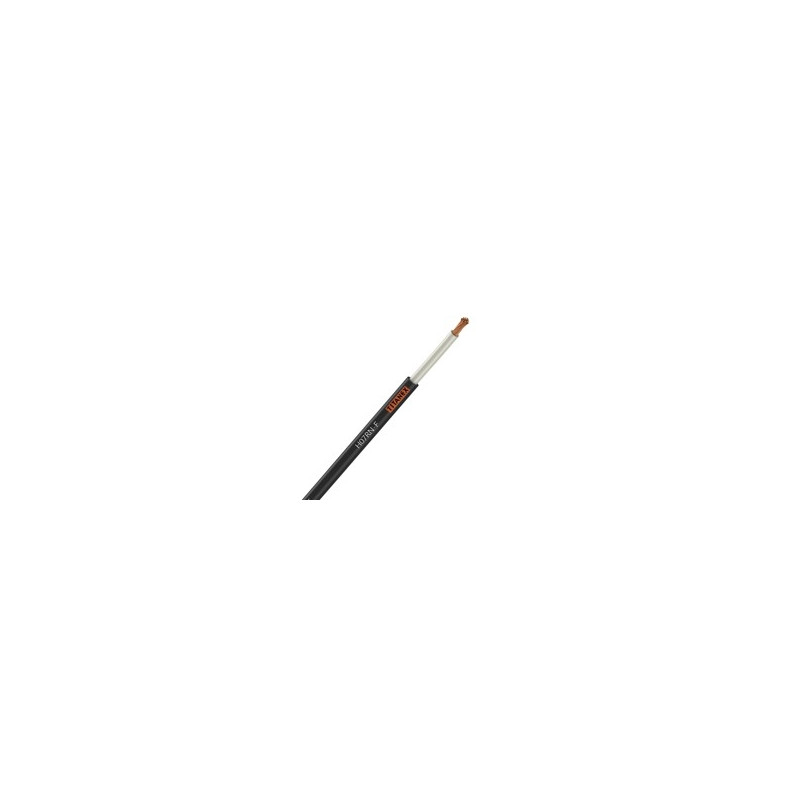

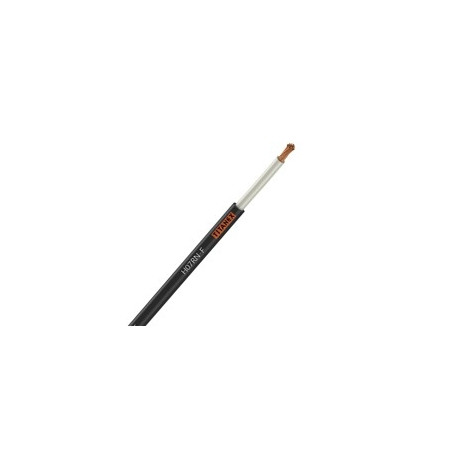

CGTU 1 x 10 (H07RN-F) TITANEX

Kabel H07RN-F TITANEX CGTU 1x10, Nexans

Popis:
Number of cores: 1
Conductor cross-section: 10mm2
Minimum outer diameter: 9.5mm
Maximum outer diameter: 11.9mm
Approximate weight: 182kg/km

ELECTRICAL CHARACTERISTICS:
Rated Voltage Uo/U (Um): 450 / 750 V
Voltage drop, single phase: 3.4V/A.km
Permissible current rating in open air: 77A
