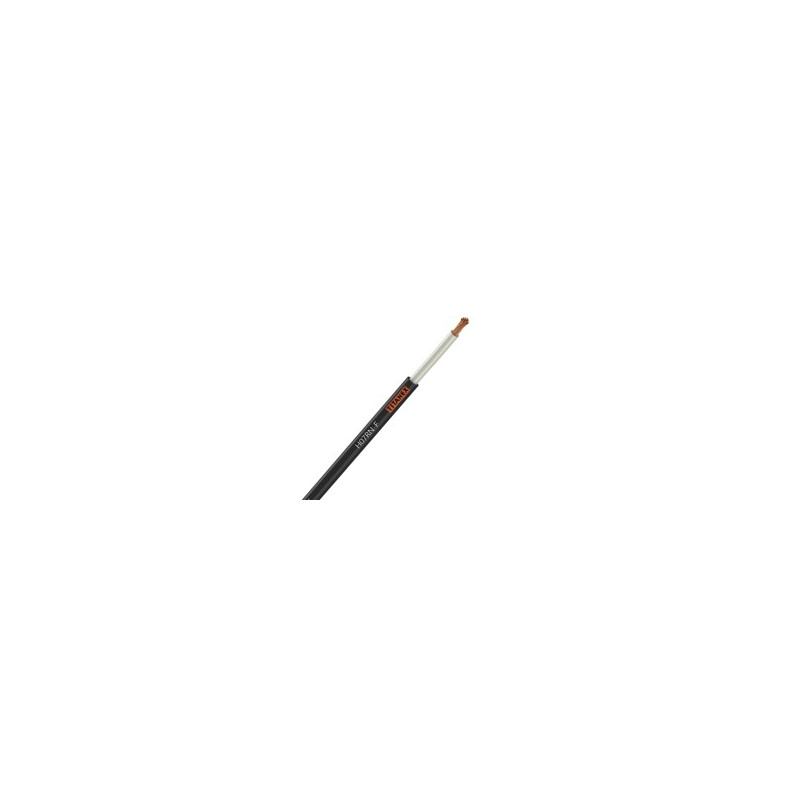

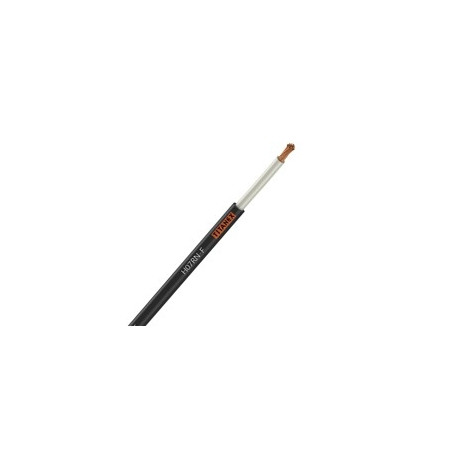

CGTU 1 x 35 (H07RN-F)

Kabel H07RN-F TITANEX CGTU 1x35, Nexans

Popis:
Number of cores: 1
Conductor cross-section: 35mm2
Minimum outer diameter: 14.3mm
Maximum outer diameter: 17.9mm
Approximate weight: 482kg/km

ELECTRICAL CHARACTERISTICS:
Rated Voltage Uo/U (Um): 450 / 750 V
Voltage drop, single phase: 1.04V/A.km
Permissible current rating in open air: 168A
