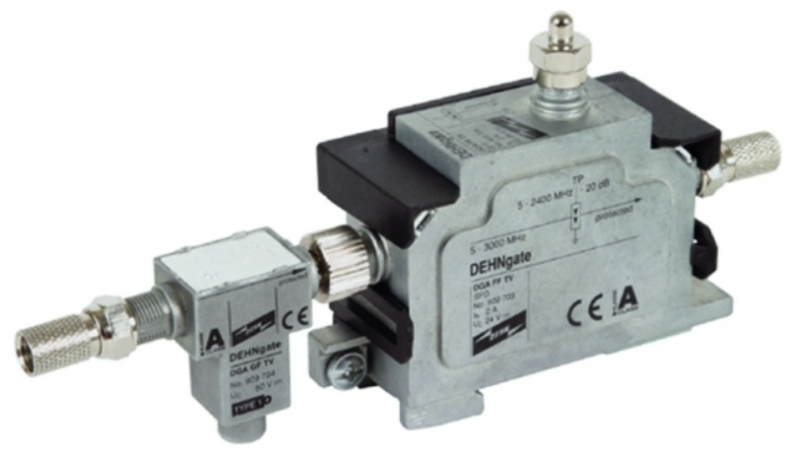

Svodič DEHNgate DGA GFF TV 909705

Popis produktu:

Max. continuous operating d.c. voltage (U
H{ C) 24 V
Nominal current (IL) 2 A
D1 Lightning impulse current (10/350 µs) (Iimp) 2.5 kA
C2 Nominal discharge current (8/20 µs) (In) 10 kA
Voltage protection level for Iimp D1 (UP) ? 230 V
Voltage protection level for In C2 (UP) ? 300 V
Voltage protection level at 1 kV/µs C3 (UP) ? 60 V
Frequency range d.c., 5-2400 MHz
Insertion loss 5 - 862 MHz typ. 1.7 dB
Insertion loss 862 - 2400 MHz typ. 1.9 dB
Return loss (5 - 8 MHz) ? 10 dB
Return loss (8 - 47 MHz) ? 14 dB
Return loss (47 - 2400 MHz) ? 18 dB (-1.5 dB/octave)
Return loss test socket (5 - 47 MHz) ? 18 dB
Test socket connection loss 20 dB
Shield attenuation 5 - 300 MHz ? 85 dB
Shield attenuation 300 - 470 MHz ? 80 dB
Shield attenuation 470 - 1000 MHz ? 75 dB
Shield attenuation 1000 - 2400 MHz ? 55 dB
Characteristic impedance (Z) 75 ohms
Operating temperature range -40°C...+80°C
Degree of protection (if lines are connected) IP 30
For mounting on 35 mm DIN rails acc. to EN 60715 or wall mounting
Connection (input/output) F socket / F socket
Earthing via DIN rail or screw connection
Enclosure material metal
Colour bare surface
Test standards IEC 61643-21 / EN 61643-21
Approvals GOST
Accessories 2 x F plug
Weight 283 g
Customs tariff number 85363090
GTIN 4013364105706
PU 1 pc(s)
