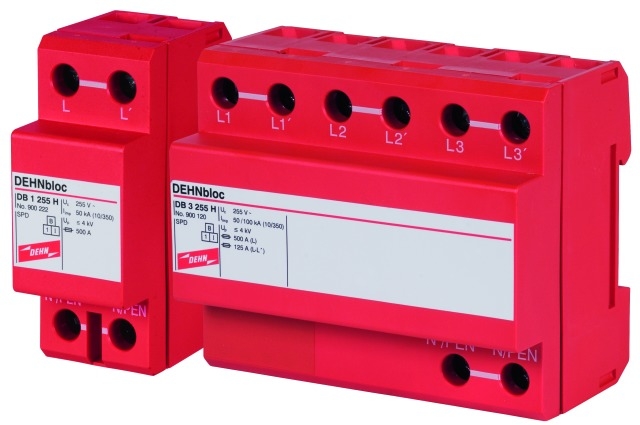

Svodič DEHNbloc DB 1 225H 900222

Popis produktu:

SPD according to EN 61643-11 Type 1
SPD according to IEC 61643-1/-11 Class I
Nominal a.c. voltage (UN) 230 V
Max. continuous operating a.c. voltage (UC) 255 V
Lightning impulse current (10/350 µs) (Iimp) 50 kA
Specific energy (W/R) 625.00 kJ/ohms
Nominal discharge current (8/20 µs) (IN) 50 kA
Voltage protection level (UP) ? 4 kV
Follow current extinguishing capability a.c. (Ifi) 50 kArms
Follow current limitation / Selectivity no tripping of a 32 A gL/gG fuse up to 50 kArms (prosp.)
Response time (tA) ? 100 ns
Max. backup fuse up to IK = 50 kArms (ta ? 0.2 s) 500 A gL/gG
Max. backup fuse up to IK = 50 kArms (ta ? 5 s) 315 A gL/gG
Max. backup fuse for IK > 50 kArms 200 A gL/gG
Max. backup fuse (L-L') 125 A gL/gG
Temporary overvoltage (TOV) (UT) 335 V / 5 sec.
TOV characteristic withstand
Operating temperature range (parallel connection) (TUP) -40°C...+80°C
Operating temperature range (series connection) (TUS) -40°C...+60°C
Number of ports 1
Cross-sectional area (L, L', N/PEN, N'/PEN) (min.) 10 mm2 solid/flexible
Cross-sectional area (L, N/PEN) (max.) 50 mm2 stranded/35 mm2 flexible
Cross-sectional area (L', N'/PEN) (max.) 35 mm2 stranded/25 mm2 flexible
For mounting on 35 mm DIN rails acc. to EN 60715
Enclosure material thermoplastic, red, UL 94 V-0
Place of installation indoor installation
Degree of protection IP 20
Capacity 2 module(s), DIN 43880
Approvals KEMA, VDE
Weight 331 g
Customs tariff number 85363030
GTIN 4013364102521
PU 1 pc(s)
