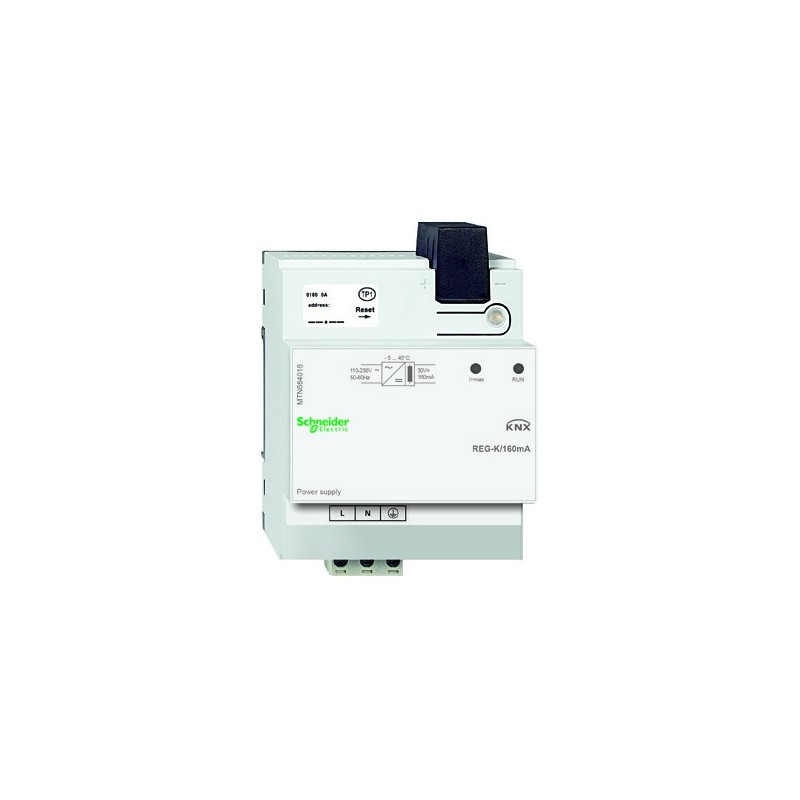

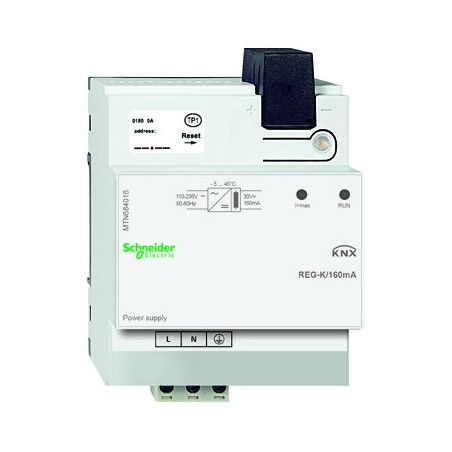

Napájecí zdroj MTN684016 REG-K/160mA, Merten
Popis:
For generating the bus voltage for a line with up to 32 bus devices.
With integrated choke to decouple the power supply from the bus and a push-button to disconnect the power
and reset the bus devices connected to the line.
For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal;
a data rail is not necessary.
Nominal voltage: AC 110-230 V ±10%
Operating voltage: min. AC 92 V - max. AC 253 V
Mains frequency: 50-60 Hz ±10%
Output voltage: DC 30 V
Output current: max. 160 mA, short-circuit-proof
Device width: 4 TE = approx. 72 mm
Contents: With bus connecting terminal and cable cover.
