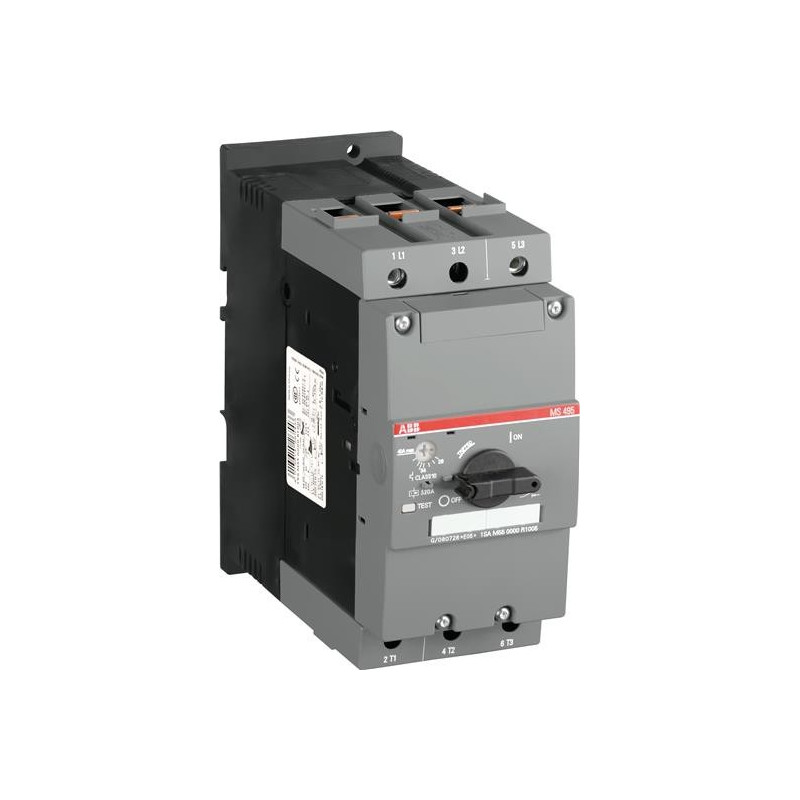

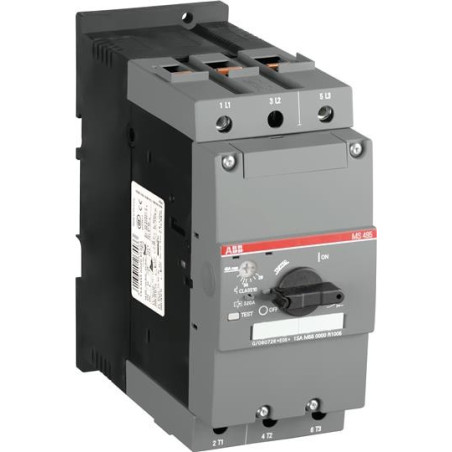

Motorový spouštěč MS495-90 1SAM550000R1009, ABB
Popis:
The MS495-90 manual motor starter is a 70 mm width devices with a rated operational current of Ie = 90.0 A.
This device is used to manually switch on and off motors and to protect them reliably and without the need for
a fuse from short-circuits, overload and phase failures. The manual motor starter offers
a rated service short-circuit breaking capacity Ics = 25 kA at 400 VAC and the trip class 10.
Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and
a rotary handle with a clear switch position indication. The manual motor starter is suitable for three
- and single-phase applications. The handle is lockable to protect against unauthorized changes.
Auxiliary contacts, signalling contacts, undervoltage releases and shunt trips are available as accessory.
