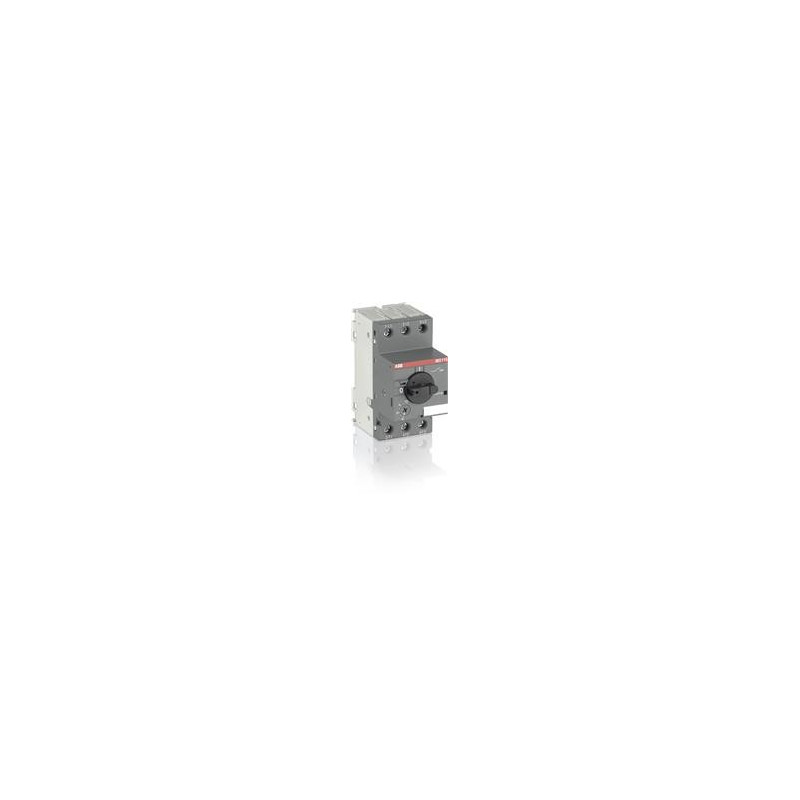

Motorový spouštěč MS116-16 1SAM250000R1011, ABB
Popis:
The MS116-16 manual motor starter is a compact 45 mm width devices with a rated operational current of Ie = 16.0 A.
This device is used to manually switch on and off motors and to protect them reliably and without the need for
a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit
breaking capacity Ics = 16 kA at 400 VAC and the trip class 10A. Further features are the build-in disconnect function,
temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication.
The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signalling contacts,
undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against
unauthorized changes are available as accessory.
