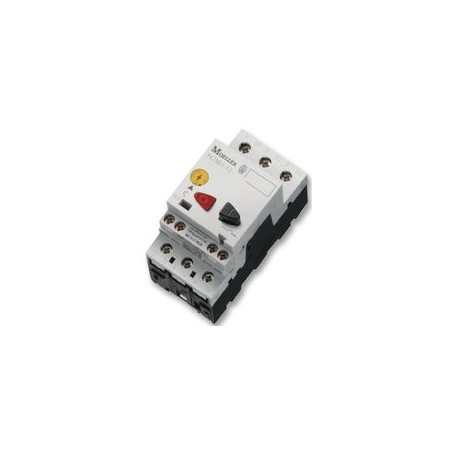

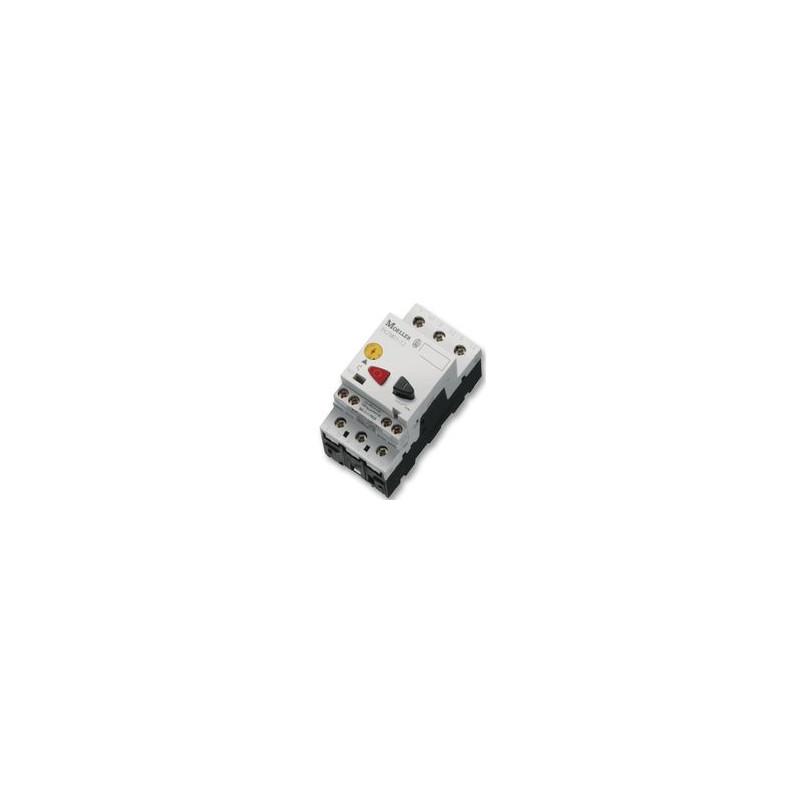

Spouštěč PKZM01-2,5A 278481

Spouštěč PKZM01-2,5 278481, Eaton

Popis:
CIRCUIT BREAKER, MOTOR PROTECTIVE
Voltage Rating V AC: 690V
Current Rating: 16A
Circuit Breaker Mounting: DIN Rail
Series: xStart
SVHC: No SVHC (16-Dec-2013)
Actuator Style: Pushbutton
Breaking Capacity Current AC: 150kA
Colour: White
Current Max: 2.50A
Current Min: 1.60A
External Depth: 85mm
External Length / Height: 93mm
External Width: 45mm
Operating Temperature Max: 55°C
Operating Temperature Min: -25°C
Switching AC3 Power Max: 1.5kW
