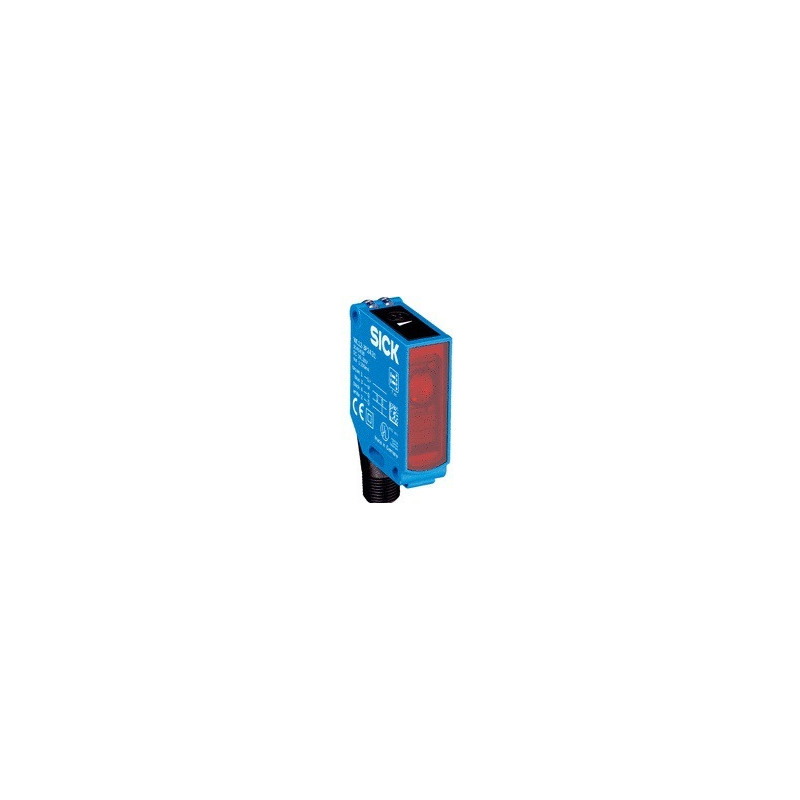

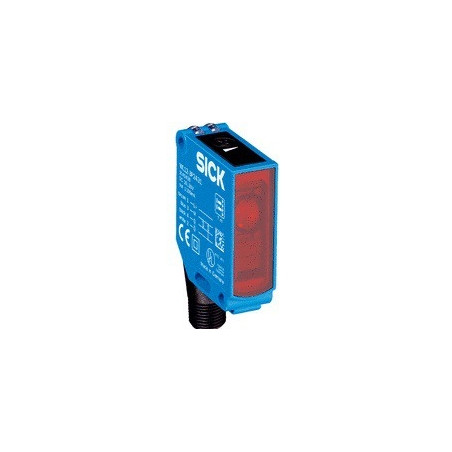

Optické čidlo WL12-3P2431 1041436

Optické čidlo WL12-3P2431 1041436, Sick

Popis:
Sensor/detection principle: Photoelectric retro-reflective sensor, autocollimation
Dimensions (W x H x D): 15.6 mm x 48.5 mm x 42 mm
Housing design (light emission): Rectangular
Sensing range max.: 0 m ... 7 m 1)
Sensing range: 0 m ... 5 m 1)
Type of light: Visible red light
Light source: LED 2)
Angle of dispersion: Approx. 1.5°
Light spot size (distance): O 100 mm, 3 m
Wave length: 640 nm
Adjustment: Potentiometer, 5 turns
