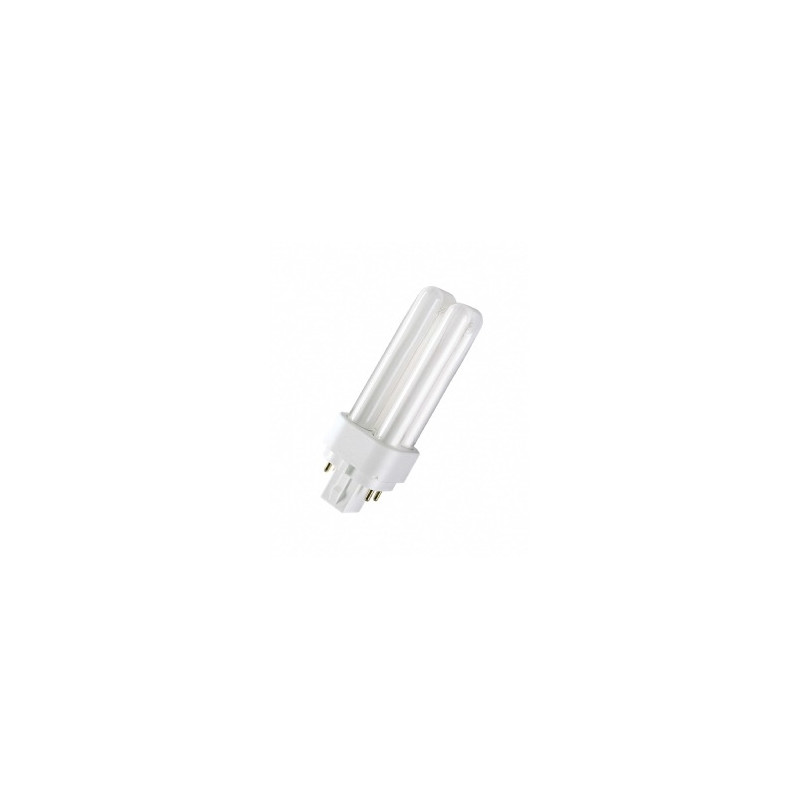

Zářivka DULUX D/E 18 W/865 G24Q-2, Osram
Popis:
Electrical data
Nominal wattage 18 W
Rated lamp efficacy (HF data) Under clarification by authority and standardization body
Rated lamp efficacy (standard condition) 64 lm/W
Rated wattage 18 W
Light technical data
Color rendering index Ra 80…89
Rated luminous flux 1140 lm
Luminous flux at 25 °C 1140 lm
Light color 865
Color temperature 6500 K
Nominal luminous flux 1140 lm
Light color as per EN 12464-1 LUMILUX Cool Daylight
Rated LLMF at 2,000 h 0.81
Rated LLMF at 4,000 h 0.77
Rated LLMF at 6,000 h 0.76
Rated LLMF at 8,000 h 0.74
Rated LLMF at 12,000 h 0.71
Rated LLMF at 16,000 h 0.70
Rated LLMF at 20,000 h 0.68
Luminance 4.5 cd/cm2
Dimensions & weight
Tube diameter 12 mm
Length 146.0 mm
Length acc. to IEC standard 140 mm
Length with base excl. base pins/connection 130.00 mm
Colors & materials
Lamp mercury content 1.4 mg
Temperatures
Rated ambient temp.w.max.luminous flux 25.0 °C
Lifespan
Service life 13000 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.95
Rated lamp survival factor at 16,000 h 0.81
Rated lamp survival factor at 20,000 h 0.50
Operation mode LLMF/LSF HF
Lifespan 20000 h
